Restaurant Booths & Banquettes
Booth seating and banquettes for restaurants, cafés, bars and hotels, made to your floor plan in straight, L-shape, U-shape and curved layouts.
Space Planning and Ergonomic Dimensions for Commercial Restaurant Booths
In high-turnover hospitality environments, booth and banquette seating generates up to thirty percent higher seating density per square metre compared to freestanding dining chairs. Achieving maximum covers while safeguarding patron comfort requires disciplined adherence to architectural ergonomic ratios. When booth seat depth is compromised, diners experience knee collision and premature fatigue; conversely, excessive depth restricts table access and complicates food service.
Our Foshan factory manufactures custom booths engineered around strict commercial ergonomic benchmarks developed across eleven years of international hospitality fit-outs:
| Ergonomic Parameter | Standard Dimension | Engineering Tolerance | Functional Impact on Dining Operations |
|---|---|---|---|
| Seat Height from Finished Floor (AFF) | 450 mm | ±5 mm | Ensures natural knee flexion at 90 degrees with diner feet resting firmly on the floor. |
| Effective Usable Seat Depth | 460 mm to 480 mm | ±5 mm | Provides full thigh support while maintaining clearance behind calf muscles to prevent posture strain. |
| Table-to-Seat Horizontal Spacing | 300 mm to 320 mm | ±10 mm | Guarantees seamless slide-in entry without torso restriction while keeping plates within easy reach. |
| Table Cantilever Edge Overhang | 0 mm to 25 mm overlap | ±5 mm | Aligns table edge directly above or slightly overlapping the cushion front to catch crumbs and stabilize glassware. |
| Backrest Incline Angle | 100° to 105° | ±1° | Delivers relaxed lumbar curvature support without pushing the diner backward into neighbouring covers. |
| Lateral Seating Width per Cover | 600 mm to 650 mm | ±15 mm | Maintains generous elbow clearance between diners during multi-course dining and banqueting service. |
Layout Configurations and Turning Radius Engineering for Banquette Seating
Commercial dining venues demand tailored spatial arrangements that balance guest intimacy with staff service corridors. Selecting between straight inline banquettes, corner L-shapes, circular U-shapes, and serpentine flowing islands depends heavily on room geometry, structural columns, and ceiling services:
- Straight Inline Banquettes: The most cost-effective arrangement for perimeter walls. Standard unit modules of 1,200 mm (two-person cover) or 1,800 mm (three-person cover) allow concealed modular connectors that simplify on-site freight handling and assembly.

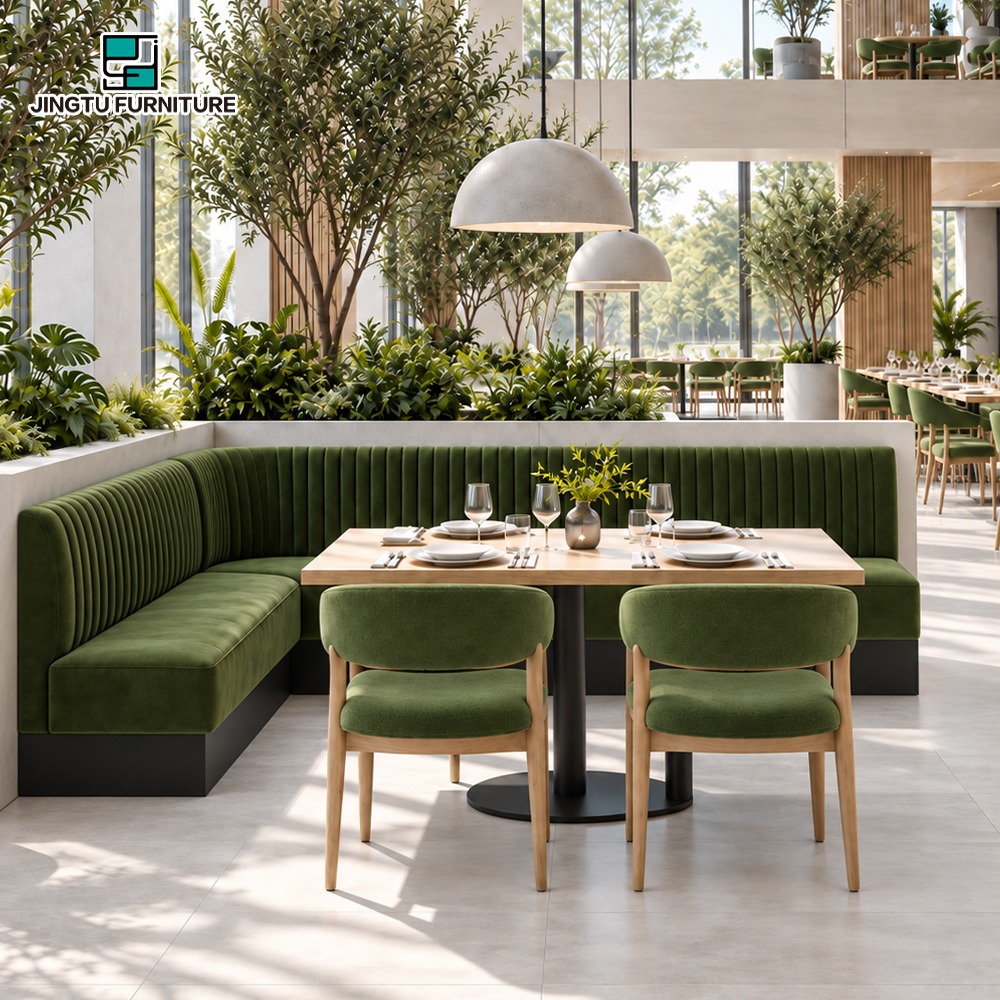

- L-Shaped Corner Banquettes: Maximizes dead perimeter corners. Our drafting desk incorporates dedicated corner transition quadrants with a reinforced backrest return that eliminates uncomfortable pinching angles.
- U-Shaped Semi-Enclosed Pods: Designed for VIP parties and lively family dining. Outer footprint typically measures 2,000 mm by 2,200 mm with an internal turning radius of at least 1,200 mm, preventing diners trapped in the centre from disturbing adjacent table settings.

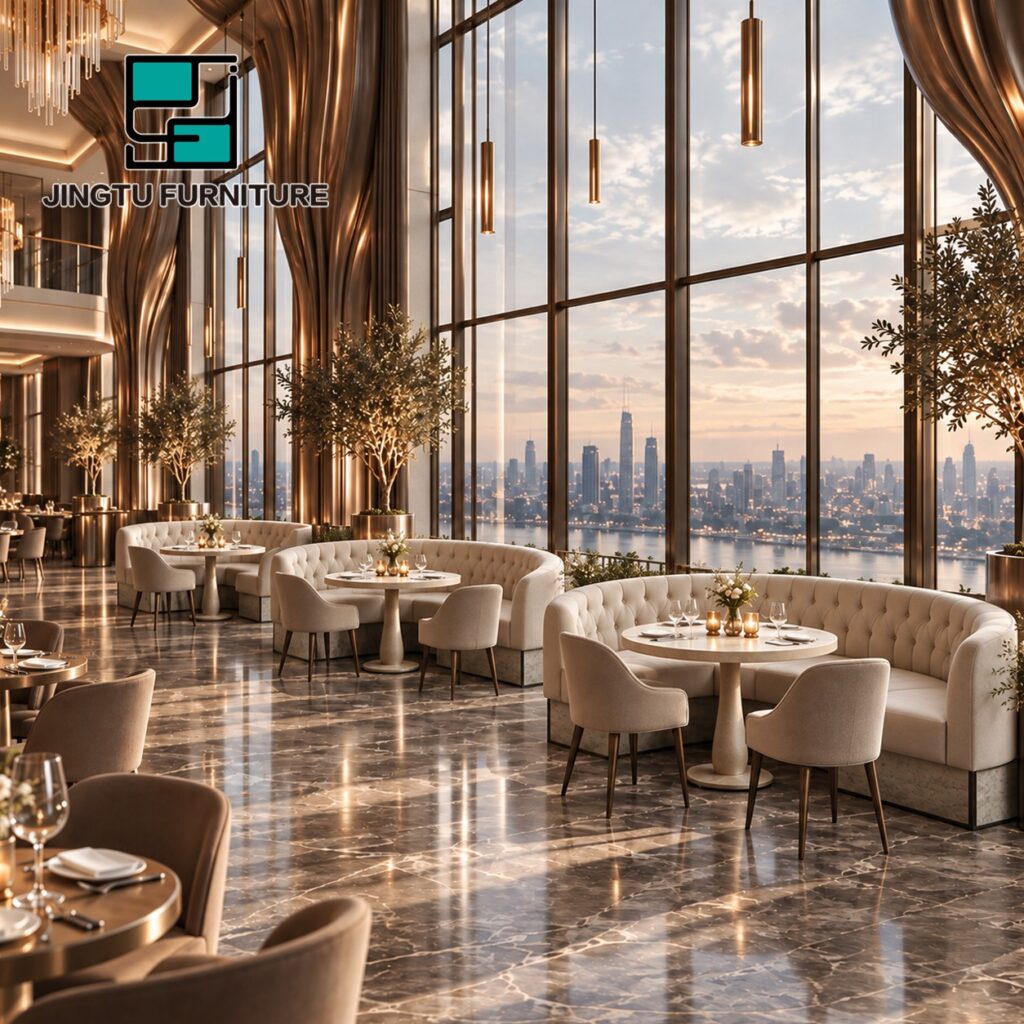

- Curved and Serpentine Island Banquettes: Creates organic zoning across sprawling dining halls and open hotel lobbies. Every curved segment is precision-cut using multi-axis CNC machines to maintain a consistent radius, ensuring that bespoke custom tabletops follow identical concentric radiuses.
Fire Safety Compliance with BS 5852 Crib 5 and CAL 133 Standards
Public commercial dining spaces operate under stringent municipal fire codes. Using domestic grade foams or uncertified decorative fabrics exposes hospitality operators to severe insurance liabilities and failed fire brigade inspections. At Yiben Furniture, all upholstered booths are constructed with certified contract-grade fire retardant component systems:
- CMHR High-Density Cold-Cure Foam: We exclusively install Combustion Modified High Resilience (CMHR) foam boasting densities between 38 kg/m³ and 48 kg/m³. Infused with micro-encapsulated melamine fire suppressants, CMHR foam absorbs heat, releases inert nitrogen, and forms an insulating protective char layer that prevents liquefaction and flaming droplets.
- British Standard BS 5852 Crib 5 Verification: Composite mock-up specimens undergo full wooden crib ignition testing where the flame must self-extinguish within ten minutes with zero through-burning.
- California Technical Bulletin CAL 133 & TB 117-2013: Full-scale open-flame burner evaluations for public occupancy spaces across North America, verified with documented test certificates from ISO/IEC 17025 accredited testing laboratories including SGS and Intertek.
- Aramid Barrier Interliners: When architects specify delicate imported designer fabrics such as natural linen, bouclé, or untreated wool, we wrap the internal foam core with an 800°C flame-resistant aramid barrier interliner, achieving composite compliance without stiffening the primary face fabric.
Structural Base Joinery and Moisture-Sealed Heavy-Duty Plinths
The primary vulnerability in high-frequency commercial booths lies at floor level. Nightly floor scrubbing, chemical detergents, and constant patron footwear kicks rapidly degrade standard chipboard or unsealed veneers. Yiben solves this operational pain point through heavy-duty industrial joinery and specialized moisture barriers:
- 18 mm Moisture-Resistant Birch Plywood Substructures: Internal framing utilizes cross-laminated Russian birch structural plywood joined via CNC-milled mortise-and-tenon interlocking slots, reinforced with kiln-dried solid beech corner blocks and industrial polyurethane D4 adhesives.
- Protective Plinth Base Kickplates: Exposed plinths are fitted with 1.2 mm grade 304 stainless steel kickplates in brushed brass, satin black, or mirror chrome PVD finishes. Alternatively, high-impact black PVC commercial bumper extrusions provide total immunity against industrial mop water and vacuum impacts.
- Removable Service Access Panels: For wall-fixed banquettes requiring integration with floor electrical pop-ups, data outlets, or perimeter HVAC grilles, our bases incorporate concealed push-release or magnetic hatch doors, enabling facilities teams to access building services without unbolting fixed joinery.
Commercial Total Cost of Ownership and Seating ROI Comparison
Investing in custom engineered commercial banquettes drastically reduces long-term operational costs. Cheap generic booths constructed with 25 kg/m³ domestic foam and stapled low-grade softwood typically experience cushion sagging and broken frames within twelve months of high-traffic use. Yiben’s commercial-grade construction provides seven to ten years of pristine structural integrity under 16-hour daily commercial operation, lowering replacement cycles and protecting the visual reputation of your hospitality brand.
Frequently Asked Questions Regarding Custom Restaurant Booth Manufacturing
What information is required to receive a full itemized shop drawing and quotation?
To prepare an accurate commercial quotation and 1:20 scale technical CAD drawings, please provide your CAD floor plan (.dwg), desired layout footprints (linear metres or individual module lengths), preferred upholstery material (contract vinyl, commercial faux leather, velvet, or natural leather), target fire ratings, and delivery destination terms (FOB, CIF, or DDP).
Can you produce curved booths that match non-standard architectural wall curvatures?
Yes. Our engineering drafting team extracts precise curvature coordinates directly from your architectural Revit or AutoCAD files. For historic or irregular renovation spaces, we accept field laser measurement point-cloud data and provide segmented shop drawings with labelled joinery keys for frictionless on-site positioning.
What is the typical production lead time for a complete restaurant booth fit-out?
Standard fabrication lead time is 25 to 30 calendar days following shop drawing sign-off and material swatch approval. For expedited hospitality openings, accelerated 18-day factory schedules can be arranged across our automated production bays.
How are large curved or L-shaped banquette sections shipped safely overseas?
Bespoke banquettes are engineered into precision modular sub-assemblies typically measuring 1,200 mm to 1,800 mm in length. Modules are interlocked using heavy-duty concealed drop-in steel cleat hardware. Each module is wrapped in multi-layer foam, micro-perforated vapor barrier film, edge-protected with high-density honeycomb guards, and secured inside heat-treated export plywood crates compliant with ISPM-15 standards.
Do you accommodate Customer's Own Material (COM) for custom booth upholstery?
Yes. We regularly accept Customer's Own Material (COM) drop-shipped directly to our Foshan factory warehouse. Our master cutters evaluate fabric pattern repeats, pile orientation, and tensile elasticity to ensure flawless pattern matching across extended banquette runs.
